4to6 Tunneling for IPv6 ISP

Page 1 of 1

[ 1 post ]

Print view

Previous topic | Next topic

Author

Message

midhunav

Post subject: 4to6 Tunneling for IPv6 ISP

Posted: Fri Jan 27, 2012 9:01 am

Joined: Fri Jan 27, 2012 8:16 am
Posts: 2

HQ Router Configuration

service timestamps debug datetime msec
service timestamps log datetime msec
no service password-encryption
!
hostname Hq
!
boot-start-marker
boot-end-marker
!
!
no aaa new-model
memory-size iomem 5
!
!
ip cef
no ip domain lookup
!
!
ipv6 unicast-routing
!
!
!
!
interface Loopback0
ip address 192.168.10.1 255.255.255.0
!
interface Tunnel0
ip address 10.1.1.1 255.255.255.0
tunnel source Serial0/0
tunnel destination 2010::3
tunnel mode ipv6
!
interface Serial0/0
no ip address
ipv6 address 2000::1/64
ipv6 address FE80::1 link-local
serial restart-delay 0
!
interface Serial0/1
no ip address
shutdown
serial restart-delay 0
!
interface Serial0/2
no ip address
shutdown
serial restart-delay 0
!
interface Serial0/3
no ip address
shutdown
serial restart-delay 0
!
router ospf 1
log-adjacency-changes
network 10.1.1.1 0.0.0.0 area 0
network 192.168.10.1 0.0.0.0 area 0
!
no ip http server
no ip http secure-server
!
!
!
ipv6 route ::/0 2000::2
!
!
!
control-plane
!
!
!
line con 0
exec-timeout 0 0
logging synchronous
line aux 0
line vty 0 4
!
!
end

ISP Router Configuration

service timestamps debug datetime msec
service timestamps log datetime msec
no service password-encryption
!
hostname ISP
!
boot-start-marker
boot-end-marker
!
!
no aaa new-model
memory-size iomem 5
!
!
ip cef
no ip domain lookup
!
!
ipv6 unicast-routing
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
interface Serial0/0
no ip address
ipv6 address 2000::2/64
ipv6 address FE80::2 link-local
serial restart-delay 0
!
interface Serial0/1
no ip address
ipv6 address 2010::2/64
ipv6 address FE80::3 link-local
serial restart-delay 0
!
interface Serial0/2
no ip address
shutdown
serial restart-delay 0
!
interface Serial0/3
no ip address
shutdown
serial restart-delay 0
!
no ip http server
no ip http secure-server
!
!
!
!
!
!
control-plane
!
!
!
!
!
!
!
!
!
!
line con 0
exec-timeout 0 0
logging synchronous
line aux 0
line vty 0 4
!
!
end

BR Router Configuration

service timestamps debug datetime msec
service timestamps log datetime msec
no service password-encryption
!
hostname Br
!
boot-start-marker
boot-end-marker
!
!
no aaa new-model
memory-size iomem 5
!
!
ip cef
no ip domain lookup
!
!
ipv6 unicast-routing
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
interface Loopback0
ip address 172.16.1.1 255.255.255.0
!
interface Tunnel0
ip address 10.1.1.2 255.255.255.0
tunnel source Serial0/0
tunnel destination 2000::1
tunnel mode ipv6
!
interface Serial0/0
no ip address
ipv6 address 2010::3/64
ipv6 address FE80::4 link-local
serial restart-delay 0
!
interface Serial0/1
no ip address
shutdown
serial restart-delay 0
!
interface Serial0/2
no ip address
shutdown
serial restart-delay 0
!
interface Serial0/3
no ip address
shutdown
serial restart-delay 0
!
router ospf 1
log-adjacency-changes
network 10.1.1.2 0.0.0.0 area 0
network 172.16.1.1 0.0.0.0 area 0
!
no ip http server
no ip http secure-server
!
!
!
ipv6 route ::/0 2010::2
!
!
!
control-plane
!
!
!
!
!
!
!
!
!
!
line con 0
exec-timeout 0 0
logging synchronous
line aux 0
line vty 0 4
!
!
end

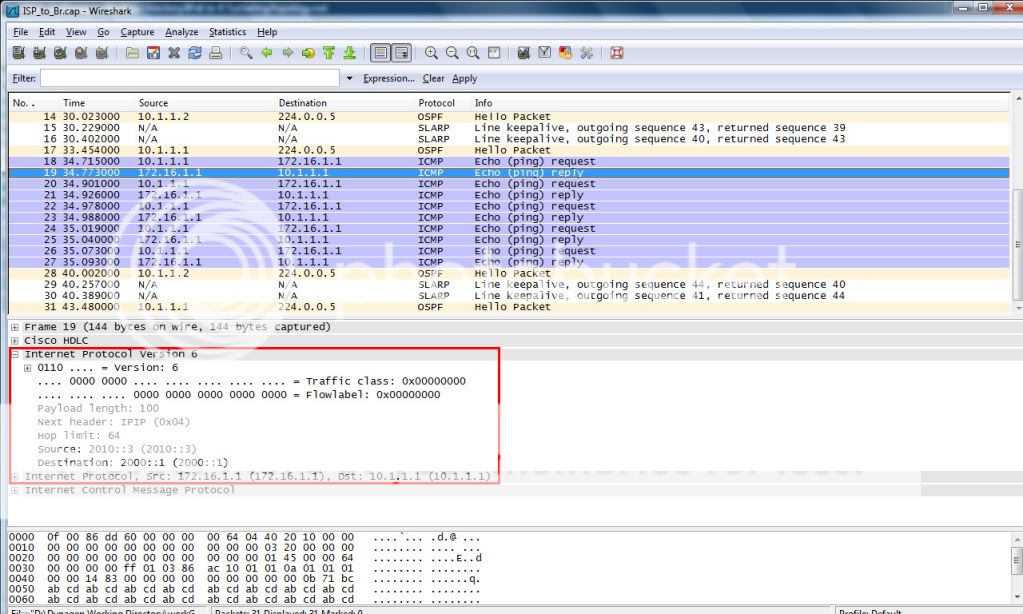

Packet Capture Output

_________________
Your's...........
.................Midhun Kumar
